CloudSwitch L2Plus 24

Cloud Managed 24-Port Gigabit Switch with 4 SFP+ Ports

ECS1528T

Product Highlight

EnGenius Cloud Managed Layer 2+ Switch, ECS1528T, is a reliable and easy-to-manage 24-Port Gigabit and 4-Port SFP+ uplink switch that provides high-speed connectivity for your network devices. Its zero-touch provisioning and centralized cloud management make it easy to set up and manage your network from anywhere, anytime. With its Voice-VLAN feature and robust security, you can ensure quality voice and video traffic while protecting against malicious attacks.

24x Gigabit ports for high-speed connections

4x 10Gbps SFP+ uplink ports for bandwidth-intensive applications

13" housing compact size design

Zero touch provisioning, centralized cloud management and visualized monitoring

Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone

Robust security that supports Port based / MAC based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication and more

Optimized for quality voice and video traffic with Voice-VLAN feature

Downloads

File Name	Type
Cloud Enabled Network Switches Datasheet	Data Sheet
EnGenius Cloud Solution Brochure	Brochure
Cloud Management Datasheet	Data Sheet
CloudSwitch L2Plus 24 _ECS1528T_QSG_EN	Quick Guide
CloudSwitch L2Plus 24 _ECS1528T Datatsheet	Data Sheet

If you are unable to find the file, please get it in the download center.

Related Products

Products

Accessories

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

24 x 10/100/1000 Mbps Ports + 4 x SFP+ Ports

Switching Capacity

128 Gbps

SDRAM

512 MB

Flash Memory

128 MB

Power Source

100 ~ 240VAC, 50/60Hz

Physical Interface

System Indicators

Power LED
Fault LED

Port Indicators

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
Local Web GUI

MAC Address Table

16K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported/

Queue 8

QoS Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS1528T Device

Weight: 4.4 lbs. (1.9 kg)
Width: 13” (330.20 mm)
Length: 9” (228.60 mm)
Height: 1.73” (43.94 mm)

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable

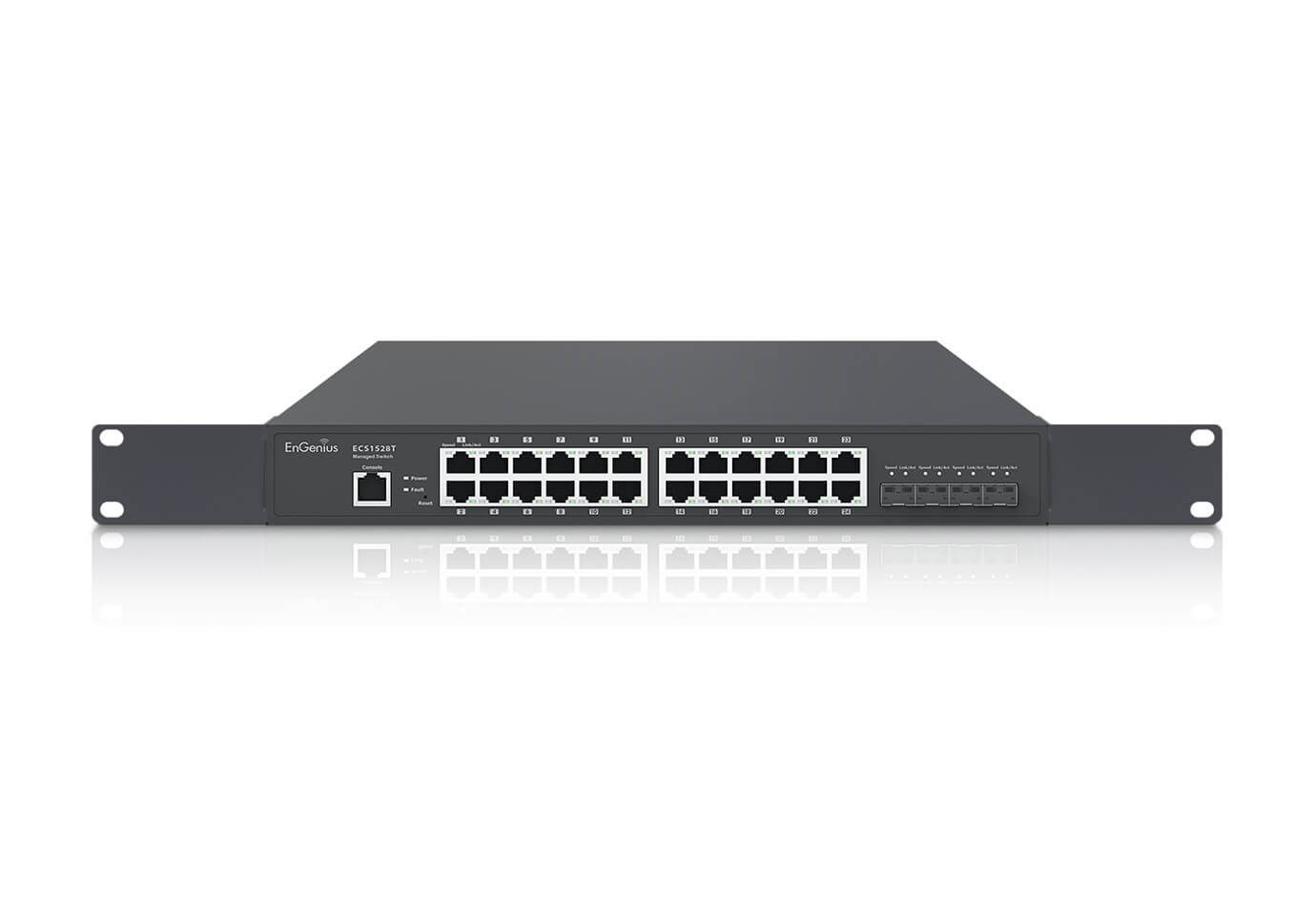

1x Rack Mount Kit

Model Comparison

	CloudSwitch L2Plus 24	CloudSwitch L2Plus 8 PoE	CloudSwitch L2Plus 24 Full PoE	CloudSwitch L2Plus 48
Switch Class	Layer 2+	Layer 2+	Layer 2+	Layer 2+
Gigabit Ports	24	8	24	48
Multi-G Ports	-	-	-	-
SFP Ports	-	-	-	-
SFP+ Ports	4 x 10G	-	4	4
RJ45 Console Port	Yes	-	Yes	Yes
PoE Capable Port	-	Ports 1 - 8	Ports 1 - 24	-
Power-over-Ethernet	-	802.3af	802.3af/at	-
Total PoE Budget	-	55W	410W	-
Form Factor	13"1U	9.45 (Desktop)	19”1U	19”1U
Switching Capacity	128 Gbps	16 Gbps	128 Gbps	176 Gbps
MAC Address Table Size	16k	8K	16K	32k
Dimensions	330 x 230 x 44 mm	240 x 105 x 27 mm	440 x 260 x 44 mm	440 x 260 x 44 mm
Cloud Managed Mode	EnGenius Cloud	EnGenius Cloud	EnGenius Cloud	EnGenius Cloud
On-premises Managed	-	Yes	-	-
Standalone Mode	Yes	Yes	Yes	Yes
