Cloud6 4×4 Outdoor

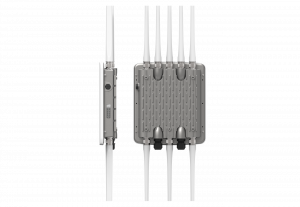

Cloud Managed Wi-Fi 6 4 x 4 Outdoor Access Point

ECW270

Product Highlight

ECW270 Wi-Fi 6, 4x4, IP68, MU-MIMO Cloud Managed Dual-Band Outdoor Wireless Access Point reaches speeds of 2,400 Mbps on 5 GHz and 1,200 Mbps on 2.4 GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.

  • Dual concurrent 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
  • Supports up to 2,400 Mbps in 5 GHz band & 1,200 Mbps in 2.4 GHz band
  • IP68-Rated weatherproof & dustproof housing withstands harsh environments
  • 1 x 2.5 Giga PoE++ compatible port realizes greater throughput and supports Power over Ethernet (802.3 at/bt) for flexible installation over 100 meters (328 feet)
  • 1 x Gigabit Port
  • Four detachable 5 dbi high-gain 2.4GHz antennas
  • Four detachable 7 dbi high-gain 5GHz antennas
  • Quick-scan device register & configuration and remote monitoring & troubleshooting
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals

Downloads

If you are unable to find the file, please get it in the download center.

Technical Specifications

Standards

IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac

Antenna

4 x 2.4 GHz: 5 dBi (External Omni-Directional)
4 x 5 GHz: 7 dBi (External Omni-Directional)

Physical Interface

1 x 10/100/1000 Ethernet Port
1 x 10/100/1000/2500 Ethernet Port (PoE++)

LED Indicators

1 x Power
1 x LAN1
1 x LAN2
1 x 2.4 GHz
1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3 at/bt Input
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption

46W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Managed mode: AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2483 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5875 MHz

Transmit Power

Up to 24 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Radio Chains/Spatial Stream

4 × 4:4

SU-MIMO

Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.

MU-MIMO

Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent User

511 Per radio

Management Features

Multiple BSSID

8 SSIDs for both 2.4 GHz and 5 GHz radios

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Complaint With IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH Tunnel
Client Isolation

Environmental & Physical

Temperature Range

Operating: – -4 º~149 ºF/-20 ºC~65 ºC
Storage: -40Fº~176ºF/-40ºC~80ºC

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

IP Rating

IP68

Surge Protection

1KV

ESD Protection

Contact: 4KV
Air: 8 KV

Dimensions & Weight

ECW270 Device

Weight: 1870g
Width: 218 mm
Length: 285 mm
Height: 53 mm

Package Contents

1 – ECW270 Cloud Managed Outdoor Access Point
2 – Mounting Brackets
1 – Wall-Mount Screw Set
4 – 2.4GHz 5dBi Detachable Antennas
4 – 5GHz 5dBi Detachable Antennas
1 – Quick Installation Guide

Certifications

FCC
CE
IC



Model Comparison

Cloud6 4x4 Outdoor

Cloud5 2x2 Outdoor

Cloud6 2x2 Outdoor

EWS850AP

EWS860AP

Wi-Fi Standard Wi-Fi 6 (11ax) 802.11a/b/g/n/ac Wave 2 802.11ax 802.11ax 802.11ac
Radio 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz 2.4 GHz & 5 GHz
Max. Data Rates(2.4 GHz) 1,200 Mbps 400 Mbps 574 Mbps 574 Mbps 450 Mbps
Max. Data Rates(5 GHz) 2,400 Mbps 867 Mbps 1,200 Mbps 1,200 Mbps 1,300 Mbps
Radio Chains 4 x 4:4 2x2:2 2 x 2:2 2 x 2:2 3 x 3:3
Transmit Power on(2.4 GHz) 24 dBm Up to 23 dBm Up to 23 dBm Up to 23 dBm Up to 29 dBm
Transmit Power on(5 GHz) 24 dBm Up to 23 dBm Up to 25 dBm Up to 23 dBm Up to 29 dBm
Integrated Antenna - - - - -
External Antenna 4 x 5 dBi (2.4 GHz); 4 x 7 dBi (5 GHz) 2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) 2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) - -
Power-over-Ethernet 802.3 at/bt 802.3af/at 802.3af/at 802.3af/at 802.3at (at in + af out)
Ethernet Ports 2x Gigabit ports (PoE+) 1x Gigabit port (PSE Out) 1 x 10/100/1000 Ethernet Port (PoE+) 1 x 10/100/1000/2500 Ethernet Port (PoE+) 1 x 10/100/1000 Ethernet Port 2 x 10/100/1000 Ethernet Ports
Mounting Type Wall/ Pole Pole / Wall Pole / Wall Pole / Wall Ceiling / Wall
IP Rating IP68 IP67 IP67 - -
Dimensions 218 x 285 x 53 mm 112 x 173 x 30 mm 124 x 190 x 52 mm 111.2 x 173.6 x 30.29 mm 285 x 217.93 x 53.34 mm
Mesh Technology Yes Yes Yes Yes Yes
EnJet Technology - - - - -
On-premises (ezMaster) - - - Yes Yes
Cloud To-Go app Yes Yes Yes - -
EnWiFi app - - - Yes Yes
