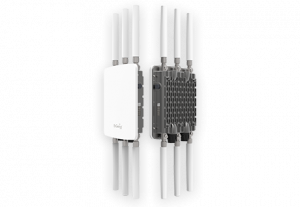

ENH1750EXT

Dual-Band AC1750 Ruggedized Wireless Outdoor Access Point

Product Highlight

The ENH1750EXT supports greater user capacities in outdoor settings like marinas, campgrounds, and travel plazas with dual-band speed and performance to 1,300 Mbps on 5 GHz and 450 Mbps on the 2.4 GHz band. Band Steering shifts dual-band-capable clients to the less-congested 5 GHz band, optimizing bandwidth.

  • High 29 dBm Transmit Power Ensures Long-Range Connectivity
  • (6) Wide-Reaching, Detachable Antennas; Pair With 3x3 Sector Antenna for Extended Coverage
  • Industrial-Grade IP68-Rated Waterproof Housing Withstands Harsh Environments
  • (2) Gigabit PoE+ Ports Offer Flexible Power Options for Connecting IP Cameras or APs

Downloads

If you are unable to find the file, please get it in the download center.

Technical Specifications

Standard

IEEE 802.11a/n/ac on 5 GHz
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.3at
IEEE 802.11r
IEEE 802.11k
IEEE 802.11x

Memory Capacity

Memory: 256 MB
Flash Memory 16 MB

Antenna

3 x 5dBi External Omni-Directional N-Type Antennas for 2.4 GHz
3 x 7dBi External Omni-Directional N-Type Antennas for 5 GHz

Physical Interface

2 x 10/100/1000 Gigabit Ethernet Ports
– LAN1: Supports 802.3at PoE Input
– LAN2: Data & 802.3af PoE Pass-Through
1 x Reset Button

LED Indicators

1 x Power
2 x WLAN (Wireless Connection)
2.4GHz
5GHz
2 x LAN
Power Source
External Power Adapter
DC IN, 48 V/0.8A
IEEE 802.3at Compliant Source
Active Ethernet (PoE)

PSE Output

LAN2 802.3af power source with included power adapter

Surge Protection

4KV

ESD Protection

Contact: 6KV
Air: 8KV

Ingress Protection Marking

IP68-Rated Waterproof/Dustproof Enclosure

Mounting

Ceiling Mount
Wall Mount

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes

Access Point
WDS
Mesh

WDS Detail

WDS AP
WDS Bridge
WDS Station

Frequency Radio

2.4GHz: 2400MHz ~ 2835MHz
5GHz: 5150MHz ~ 5250MHz, 5470 ~ 5725MHz, 5725MHz ~ 5850MHz

Transmit Power

Up to 29 dBm on 2.4 GHz
Up to 29 dBm on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

3 x 3:3

Supported Data Rates (Mbps)

2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)

Supported Radio Technology

802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)

Channelization

802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width

Supported Modulation

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

AP Radio Settings

Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
RSSI Threshold
AP Client Limiting
VLANs for AP – Multiple SSIDs
Secured Guest Network
Email Alert
Wi-Fi Scheduler
Auto Reboot
Traffic Shaping
Client Traffic Status

Management Features

Deployment Options
Standalone (Individually Managed)

Configuration

Web Interface (HTTP)
CLI (Telnet)

Control Features

Firmware Upgrade

Security

WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation

Management Features

Multiple BSSID

Supports up to 8 SSIDs per radio

VLAN Tagging

Supports 802.1q SSID-to-VLAN tagging
VLAN Pass-through

QoS

Compliant with IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Environmental & Physical

Temperature Range

Operating: -4 °F to 158 °F, -20 °C to 70 °C
Storage: -22 °F to 176 °F, -30 °C to 80 °C

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

ENH1750EXT Device (w/o antennas)

Weight: 4.17 lbs. (1891.48 g)
Length: 11.22” (285 mm)
Width: 8.58” (217.93 mm)
Depth: 2.10” (53.34 mm)

Package Contents

– ENH1750EXT Neutron Series 802.11ac 3×3 Dual Band Wireless Managed Outdoor Access Point
– Three (3) Detachable 2.4 GHz Omni-directional antennas
– Three (3) Detachable 5 GHz Omni-directional antennas
– Power Adapter (48V/0.8A)
– PoE Injector (EPE-48GR)
– Grounding Cable
– Pole Mount Bracket
– Wall Mount Base
– Mounting Screw Set
– Quick Installation Guide

Certifications

FCC
IC



Model Comparison

ENH1750EXT

ENS1750

ENS500EXT

ENS202EXT

ENH710EXT

ENH220EXT

Model Number
Wi-Fi Standard 802.11ax 802.11ac 802.11ax 802.11n 802.11ax 802.11ax
Radio - - 5 GHz 2.4 GHz - -
Max. Data Rates(2.4 GHz) 450 Mbps 450 Mbps - 300 300 Mbps 300Mbps
Max. Data Rates(5 GHz) 1,300 Mbps 1,300 Mbps 300 Mbps - 300 Mbps -
Max. Data Rates(6 GHz) - - - - - -
Radio Chains 3 x 3:3 3 x 3:3 2 x 2:2 2 x 2:2 2 x 2:2 2 x 2:2
Transmit Power on(2.4 GHz) - - - Up to 26 dBm - -
Transmit Power on(5 GHz) - - Up to 23 dBm - - -
Transmit Power on(6 GHz) - - - - - -
Antenna 3 x 5 dBi (2.4 GHz) Omni ; 3 x 7 dBi (5 GHz) Omni (Detachable) 5 dBi Omni (Internal) 2 x 5 dBi SMA-Type Omni (Detachable) 2 x 5 dBi SMA-Type Omni (Detachable) 2 x 5 dBi (2.4 GHz) N-Type Omni (Detachable) ; 2 x 7 dBi (5 GHz) N-Type Omni (Detachable) 2 x 5 dBi (2.4 GHz) N-Type Omni (Detachable)
Power-over-Ethernet - - 24V Proprietary 24V Proprietary - -
Ethernet Ports - - 2 x 10/100/1000 Ethernet Ports 2 x 10/100 Ethernet Ports - -
Mounting Type - - Pole/Wall Wall/Pole - -
Dimensions 285 x 217.93 x 53.34 mm 181 x 304 x 46 mm 100 x 186 x 29 mm 100 x 186 x 29 mm 285 x 217.93 x 53.34 mm 285 x 217.93 x 53.34 mm
Mesh Technology - - - - - -
Cloud To-Go app - - - - - -
EnWiFi app - - Yes Yes - -
