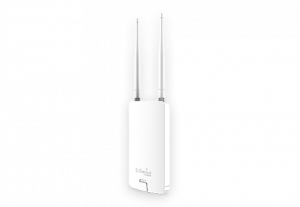

ENS500EXT

Wireless Outdoor Access Point; N300 5 GHz Removable Antennas

Product Highlight

Deploy the ENS500EXT in densely populated areas where 2.4 GHz is prevalent. Less interference assures consistent speeds in crowded environments for building-to-multi-building connections to 500 feet; or as an AP providing Wi-Fi to 5 GHz mobile devices outdoors. Pair with the SA5219 Sector Antenna for extended range.

11n Speeds to 300 Mbps on Less Congested 5 GHz Band

Weatherproof IP55-Rated Housing Resists Harsh Climates

(2) Detachable 5 dBi MIMO Antennas Maximize 360° Coverage

PoE Extends Power to Unwired Areas; Connect an IP Camera or AP via 2nd Port

Downloads

File Name	Type

If you are unable to find the file, please get it in the download center.

Technical Specifications

Standard

IEEE 802.11a/n on 5 GHz

Memory Capacity

Memory: 64 MB
Flash Memory 16 MB

Antenna

2 External Detachable Omni-Directional Antennas
5 dBi on 5 GHz

Physical Interface

2 x 10/100 Fast Ethernet Ports
1 x Reset Button

LED Indicators

1 x Power
WLAN (Wireless Connection)
5 GHz
2 x LAN

Power Source

PoE injector (EPA2406GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8KV

Mounting

Wall Mount
Pole Mount

Ingress Protection Marking

IP55-Rated Enclosure

Wireless & Radio Specifications

Operating Frequency

5GHz

Operation Modes

Access Point
Repeater
Client Bridge
Client Router
WDS: AP, Bridge

Frequency Radio

5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz

Transmit Power

Up to 26 dBm on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

2 x 2:2

Supported Data Rates (Mbps)

5 GHz: Max 300
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)

Supported Radio Technology

802.11a/n: Orthogonal frequency-division Multiplexing (OFDM)

Channelization

802.11n with 20/40 MHz channel width
802.11a with 20 MHz channel width

Supported Modulation

802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM

AP Radio Settings

AP Client Limiting
VLANs for AP – Multiple SSIDs
Wi-Fi Scheduler
Traffic Shaping
Client Traffic Status

Management Features

Multiple BSSID

Supports up to 4 SSIDs

VLAN Tagging

Supports 802.1q SSID-to-VLAN tagging
VLAN Pass-through

Spanning Tree

QoS

WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Deployment Options

Standalone (Individually Managed)

Configuration

Web Interface (HTTP)
CLI (Telnet)

Control Features

Auto Reboot
Firmware Upgrade

Security

WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support

Environmental & Physical

Temperature Range

Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C

Humidity (Non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

ENS500EXT Device

Weight: 0.66 lbs.
Width: 3.93″ (100 mm)
Length: 7.08″ (186 mm)
Height: 1.14″ (29 mm)

Package Contents

– ENS500EXT Outdoor AP
– PoE Injector (EPA2406GP)
– Pole Mount Ring
– Mounting Screw Set
– Quick Installation Guide
– 2 External Detachable Omni-Directional Antennas

Certifications

FCC
IC

Model Comparison

	ENS500EXT	ENH1750EXT	ENS1750	ENS202EXT	ENH710EXT	ENH220EXT
Model Number
Wi-Fi Standard	802.11ax	802.11ax	802.11ac	802.11n	802.11ax	802.11ax
Radio	5 GHz	-	-	2.4 GHz	-	-
Max. Data Rates(2.4 GHz)	-	450 Mbps	450 Mbps	300	300 Mbps	300Mbps
Max. Data Rates(5 GHz)	300 Mbps	1,300 Mbps	1,300 Mbps	-	300 Mbps	-
Max. Data Rates(6 GHz)	-	-	-	-	-	-
Radio Chains	2 x 2:2	3 x 3:3	3 x 3:3	2 x 2:2	2 x 2:2	2 x 2:2
Transmit Power on(2.4 GHz)	-	-	-	Up to 26 dBm	-	-
Transmit Power on(5 GHz)	Up to 23 dBm	-	-	-	-	-
Transmit Power on(6 GHz)	-	-	-	-	-	-
Antenna	2 x 5 dBi SMA-Type Omni (Detachable)	3 x 5 dBi (2.4 GHz) Omni ; 3 x 7 dBi (5 GHz) Omni (Detachable)	5 dBi Omni (Internal)	2 x 5 dBi SMA-Type Omni (Detachable)	2 x 5 dBi (2.4 GHz) N-Type Omni (Detachable) ; 2 x 7 dBi (5 GHz) N-Type Omni (Detachable)	2 x 5 dBi (2.4 GHz) N-Type Omni (Detachable)
Power-over-Ethernet	24V Proprietary	-	-	24V Proprietary	-	-
Ethernet Ports	2 x 10/100/1000 Ethernet Ports	-	-	2 x 10/100 Ethernet Ports	-	-
Mounting Type	Pole/Wall	-	-	Wall/Pole	-	-
Dimensions	100 x 186 x 29 mm	285 x 217.93 x 53.34 mm	181 x 304 x 46 mm	100 x 186 x 29 mm	285 x 217.93 x 53.34 mm	285 x 217.93 x 53.34 mm
Mesh Technology	-	-	-	-	-	-
Cloud To-Go app	-	-	-	-	-	-
EnWiFi app	Yes	-	-	Yes	-	-
