EnStation5-AC

Outdoor 5 GHz 11ac Wave 2 Long-Range PtP Wireless Bridge

Product Highlight

EnGenius EnJet EnStation5-AC 5 GHz Outdoor 802.11ac Wave 2 Wireless Client Bridge/AP, featuring Time Division Multiple Access, cuts through RF-congested environments within Point-to-Point/MultiPoint applications. EnJet enabled the EnStation5-AC assigns time slots to each station, providing faster and more stable performance and avoiding the hidden node issue. With a high-gain 19 dBi dual-polarized directional antenna that extends the network up to 5 miles point-to-point.

EnJet technology features Time Division Multiple Access, cutting through RF-congested environments

11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz

MU-MIMO improves performance & increases user device capacities

Beamforming optimizes antenna signal, reception & reliability for device

High 26 dBm transmit power and high Gain 19 dBi Directional Antennas

IP55-Rated weatherproof & dustproof housing

GigE PoE port & adapter included for placement where power is limited

Downloads

File Name	Type
EnSky with EnJet Outdoor AP Datasheet EU	Data Sheet
EnStation5-AC Datasheet EN	Data Sheet
EnStation5-AC QIG EN	Quick Guide
EnStation5-AC User Manual EN	User Manual
EnStation5-AC CE-DoC EU	CE Declaration
EnStation5ACv2-all-v3.7.20.2_c1.9.51	Firmware
EnStation5-AC FW v3.6.7_c1.9.30	Firmware
EnStation5-AC FW v3.5.0_c1.9.20	Firmware
EnStation5-AC FW v3.0.1_c1.8.53	Firmware
EnStation5AC_v2_all_FW_v3.7.21.3_c1.9.51	Firmware

If you are unable to find the file, please get it in the download center.

Related Products

Products

Accessories

Technical Specifications

Standards

IEEE 802.11a/n/ac on 5 GHz

Processor

Qualcomm® 717 MHz Quad-Core CPU
4x ARM Cortex A7

Antenna

Directional High-Gain 19 dBi Antenna

Physical Interface

2 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Ports
1 x Reset Button
Link Aggregation Achieves 2 Gbps Throughput

LED Indicators

1 x Power
WLAN (Wireless Connection)
5 GHz
2 x LAN

Power Source

Power-over-Ethernet: 24V Proprietary PoE
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption

7.5W

Surge Protection

Line to Line: 1KV
Line to Ground: 2KV

ESD Protection

Contact: 4KV
Air: 8KV

Wireless & Radio Specifications

Operating Frequency

5 GHz

Operation Modes

Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station

Frequency Radio

5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

2 x 2:2

SU-MIMO

5GHz – Two (2) Spatial Stream SU-MIMO up to 867 Mbps to individual
2×2 VHT40 client devices

MU-MIMO

5GHz – Two (2) Spatial Stream Multi-User (MU) MIMO for up to 867Mbps to
two (2) MU-MIMO capable wireless devices simultaneously

Supported Data Rates (Mbps):

5 GHz: Max 867
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11a/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2×2 MIMO with 2 Streams
Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n/ac Packet Aggregation: AMPDU, ASPDU

Supported Modulation

802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Management Features

Multiple BSSID

Supports 8 SSIDs

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant with IEEE 802.11e Standard
WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Deployment Options

Stand-Alone (Individually Managed)
Managed Mode (w/ezMaster/Neutron Series Switch)

Stand-Alone Management Features

Auto Channel Selection
Auto Transmit Power
Wireless STA (Client) Connected List
Guest Network
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
Traffic Shaping
VLANs for Access Point – Multiple SSIDs
Backup/Restore Settings
Auto Reboot
E-Mail Alert
Site Survey
Save Configuration as Default

Wireless Management Features (w/ezMaster/Neutron Switch)

AP Auto-Discovery & Provisioning
AP Auto IP Assignment
AP Group Management
Auto AP Rebooting
AP Device Name Editing
AP Radio Settings
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP – Multiple SSIDs
Secured Guest Network
Access Point Status Monitoring
Wireless Client Monitoring
Email Alert
Wireless Traffic & Usage Statistics
Real-Time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
Secure Control Messaging (SSL Certificate)
Local MAC Address Database
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler

Control Features

Managed Mode (w/Neutron Switch/ezMaster)
Distance Control (ACK Timeout)
Multicast Supported
Wi-Fi Scheduler
Client Traffic Status
RADIUS Accounting (802.1x)
Power Save Mode (U-APSD Support)
CLI Support
HTTPS

Wireless Security

WEP Encryption 64/128/152 bit
WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation

Environmental & Physical

Temperature Range

Operating: -4 ºF~140 ºF (-20 ºC~60 ºC)
Storage: -22 ºF~176 ºF (-30 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Waterproof

IP55-Rated Enclosure

Dimensions & Weight

EnStation5-AC Device

Weight: 1.11 lbs. (460 g)
Depth: 7.48” (190mm)
Height: 1.49” (38mm)

Package Contents

1 – EnStation5-AC Outdoor Wireless Bridge
1 – PoE Adapter (EPA2406GP)

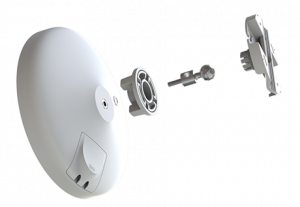

2 – Pole-Mounting Brackets
1 – Wall-Mount Screw Set
1 – Power Cord
1 – Quick Installation Guide

Certifications

FCC
CE
RCM
CB

Model Comparison

	EnStation5-AC	ENS500EXT-AC	ENS500-AC	EnStationAC
Wi-Fi Standard	802.11ac Wave2	802.11ac Wave2	802.11ac Wave2	802.11ac Wave2
Radio	5 GH	5 GHz	ENS500-AC	5 GHz
Max. Data Rates(2.4 GHz)	-	-	-	-
Max. Data Rates(5 GHz)	867 Mbps	867 Mbps	867 Mbps	867 Mbps
Max. Data Rates(6 GHz)	-	-	-	-
Radio Chains	2 x 2:2	2 x 2:2	2 x 2:2	2 x 2:2
Transmit Power on(2.4 GHz)	-	-	-	-
Transmit Power on(5 GHz)	Up to 26 dBm	Up to 23 dBm	Up to 23 dBm	Up to 26 dBm
Transmit Power on(6 GHz)	-	-	-	-
Antenna	19 dBi Directional (Integrated)	2 x 5 dBi Omni SMA-Type (Detachable)	14 dBi (Integrated)	19 dBi High-Gain Directional (Internal)
Power-over-Ethernet	24V Proprietary	24V Proprietary	24V Proprietary	802.3at (at in + af out)
Ethernet Ports	2 x 10/100/1000 Ethernet Ports	2 x 10/100/1000 Ethernet Ports	2 x 10/100/1000 Ethernet Por	2 x 10/100/1000 Ethernet Ports
Mounting Type	Pole/Wall	Pole/Wall	Pole/Wall	Pole/Wall
Dimensions	ø190 x 38 mm	100 x 185 x 27 mm	Φ190 x 38 mm	Φ190 x 38 mm
Mesh Technology	-	-	-	-
Cloud To-Go app	-	-	-	-
EnWiFi app	Yes	Yes	Yes	Yes
